Brand Name : COWELL
Model Number : M-50-BPX-1
Certification : CE
Place of Origin : China
MOQ : 1
Payment Terms : ,T/T
Delivery Time : 10-15 working days
Packaging Details : Wooden case applicable for export
M-50-BPX-1 Meter with Electronic Register, Strainer, Air Eliminator & Solenoid Valve
Characteristics
Technical Data
Model | M-40-BPX-1 | M-50-BPX-1 | M-50H-BPX-1 | M-80-BPX-1 | M-80H-BPX-1 | M-100-BPX-1 | M-100H-BPX-1 | M-150-BPX-1 | M-150H-BPX-1 |
Size | 40mm /1.5" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " | ||||
Flow Range | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
Volume/Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
Max.Pressure | 10Bar/150PSI | 25Bar/350PSI | |||||||
Accuracy | ±0.2% | ||||||||
Repeatability | ≤0.05% | ||||||||
Standard Measurement | Liter / US Gallon/IMP Gallon | ||||||||
Viscosity | 30SSU~1,500,000SSU |
Note:4"&6" flange available for M-150/6" Meter.
Constructure
![]() |

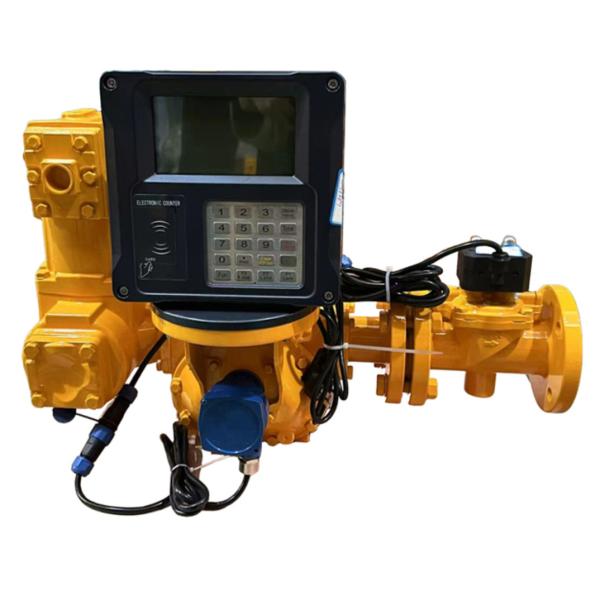

M-50-BPX-1 Electronic Flow Meter Images |
